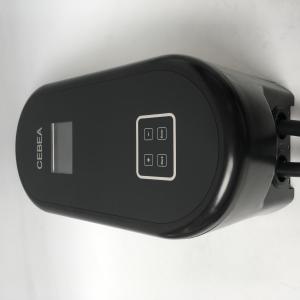

IEC 62196 3 Phase EV Car Charging Station

Product Name : ev charger, wallbox, ac ev charger

Using : commericial/Residental

Average Trouble-free Time : 8760 Hours

Operating Current : 32a, 3 phase

Start Mode : Automatic/Card/APP

Charging Standard : IEC 62196-2

Communication Interface : Ethernet/4G(Optional)

Power : 11KW

Contact Now

Ethemet Communication 230vac AC DC EV Charger 11KW 32 Amp

Function: Voltage Monitoring, temperaturing monitoring, leakage protection, waterproof
Mechanical life:No-load plug in /out >10000 times
Coupled insertion force: 45NImpact of external force: Can afford 1M height drop and 2T vehicle run over pressure
Environmental Performance:Working Temperature: -30°C ~+ 50°C
Plug Material: ABS+thermoplastic, flame retardant grade UL94 V-0
Terminal: copper alloy, silver plating
Shell color: black/white optional

PRODUCT SPECIFICATIONS

No

Item

Data

No

Item

Data

1

Rated input voltage

single-phase 220vac

9

Working temperature

-20℃-55℃

2

Max. input current

40A

10

Working humidity

5%-95%

3

Rated output voltage

220Vac

11

Working altitude

＜2000m

4

Rated output current

32A

12

Applicable environment

Indoor/Outdoor(IP54 water-proof and dust-proof)

5

Power consumption

2W

13

Noise control

≤60dB

6

Network type

4G/wifi/Ethernet/single machine

14

Working frequency

13.56Mhz

7

Mode pf charging

Fixed quantity/fixed amount/fixed time

15

Distance for swiping card

0-50mm

8

Term of payment

card/wechat pay/Ali pay/Bestway

16

Length of charging port

5m



* Compact design
Attractive appearance, 7‘ LCD screen, simple but elegant.
* Full protection
Full electrical protection, over/under temperature protection, Protection
against lightning, leakage, short circuit, over current, etc.
* Stable
IP65 protection grade, capable for harsh environment, salt-mist condition.
* Intelligent
4G/ethernet/Wifi/ Background monitoring, RFID/QR payment support.
* European standard
OCPP v1.6 standard open communication protocol, IEC62196-2 type 2 connector.
* Easy to install and operation
Wall-mounting or pole-mounting optional.
